DRYLITE DRYER

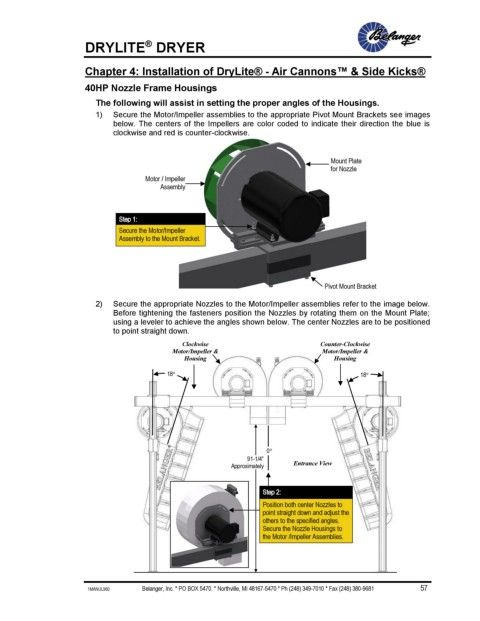

Chapter 4: Installation of DryLite® - Air Cannons™ & Side Kicks®

40HP Nozzle Frame Housings

The following will assist in setting the proper angles of the Housings.
1) Secure the Motor/Impeller assemblies to the appropriate Pivot Mount Brackets see images
below. The centers of the Impellers are color coded to indicate their direction the blue is
clockwise and red is counter-clockwise.

Mount Plate
for Nozzle
Motor / Impeller
Assembly

Step 1:
Secure the Motor/Impeller
Assembly to the Mount Bracket.

Pivot Mount Bracket

2) Secure the appropriate Nozzles to the Motor/Impeller assemblies refer to the image below.
Before tightening the fasteners position the Nozzles by rotating them on the Mount Plate;
using a leveler to achieve the angles shown below. The center Nozzles are to be positioned
to point straight down.
Clockwise Counter-Clockwise
Motor/Impeller & Motor/Impeller &
Housing Housing

18 18

0
91-1/4”
Approximately Entrance View

Step 2:
Position both center Nozzles to
point straight down and adjust the
others to the specified angles.
Secure the Nozzle Housings to
the Motor /Impeller Assemblies.
