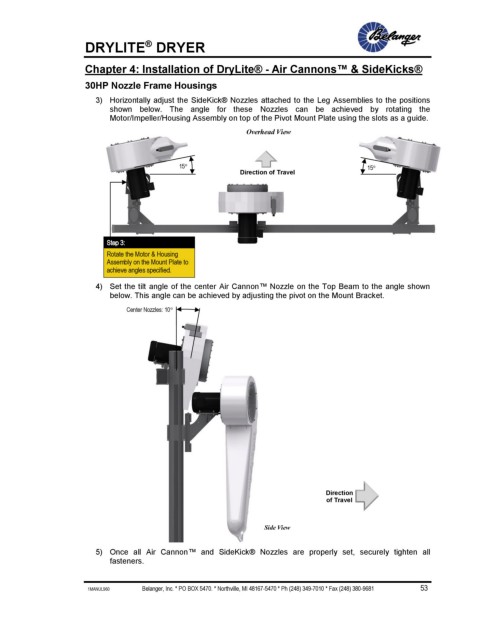

Chapter 4: Installation of DryLite® - Air Cannons™ & SideKicks®

30HP Nozzle Frame Housings
3) Horizontally adjust the SideKick® Nozzles attached to the Leg Assemblies to the positions
shown below. The angle for these Nozzles can be achieved by rotating the
Motor/Impeller/Housing Assembly on top of the Pivot Mount Plate using the slots as a guide.

Overhead View

15 15
Direction of Travel

Step 3:
Rotate the Motor & Housing
Assembly on the Mount Plate to
achieve angles specified.

4) Set the tilt angle of the center Air Cannon™ Nozzle on the Top Beam to the angle shown
below. This angle can be achieved by adjusting the pivot on the Mount Bracket.

Center Nozzles: 10

Direction
of Travel

Side View

5) Once all Air Cannon™ and SideKick® Nozzles are properly set, securely tighten all
fasteners.
