TopWinder
Maintenance
Exploded Parts

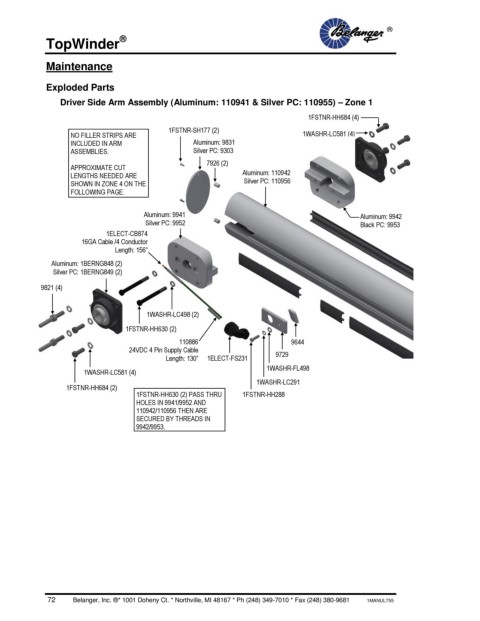

Driver Side Arm Assembly (Aluminum: 110941 & Silver PC: 110955) – Zone 1
1FSTNR-HH684 (4)
1FSTNR-SH177 (2)
NO FILLER STRIPS ARE 1WASHR-LC581 (4)
INCLUDED IN ARM Aluminum: 9831
ASSEMBLIES. Silver PC: 9303
7926 (2)
APPROXIMATE CUT
LENGTHS NEEDED ARE Aluminum: 110942
SHOWN IN ZONE 4 ON THE Silver PC: 110956
FOLLOWING PAGE.
Aluminum: 9941 Aluminum: 9942
Silver PC: 9952 Black PC: 9953
1ELECT-CB874
16GA Cable /4 Conductor
Length: 156”
Aluminum: 1BERNG848 (2)
Silver PC: 1BERNG849 (2)
9821 (4)
1WASHR-LC498 (2)
1FSTNR-HH630 (2)
110886 9644
24VDC 4 Pin Supply Cable
Length: 130” 1ELECT-FS231 9729
1WASHR-LC581 (4) 1WASHR-FL498
1WASHR-LC291
1FSTNR-HH684 (2)
1FSTNR-HH630 (2) PASS THRU 1FSTNR-HH288
HOLES IN 9941/9952 AND
110942/110956 THEN ARE
SECURED BY THREADS IN
9942/9953.
72 Belanger, Inc. ®* 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL755
