TopWinder

Maintenance

Exploded Parts

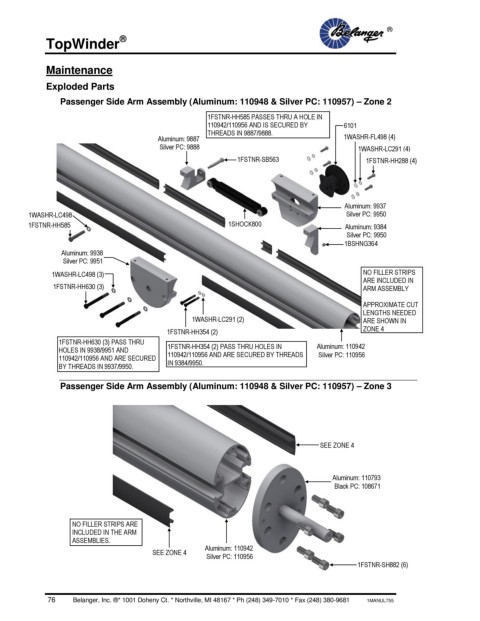

Passenger Side Arm Assembly (Aluminum: 110948 & Silver PC: 110957) – Zone 2

1FSTNR-HH585 PASSES THRU A HOLE IN
110942/110956 AND IS SECURED BY 6101

THREADS IN 9887/9888.
Aluminum: 9887 1WASHR-FL498 (4)
Silver PC: 9888 1WASHR-LC291 (4)
1FSTNR-SB563 1FSTNR-HH288 (4)

Aluminum: 9937
1WASHR-LC498 Silver PC: 9950
1FSTNR-HH585 1SHOCK800 Aluminum: 9384
Silver PC: 9950
1BSHNG364
Aluminum: 9938
Silver PC: 9951
1WASHR-LC498 (3) NO FILLER STRIPS
ARE INCLUDED IN
1FSTNR-HH630 (3) ARM ASSEMBLY

APPROXIMATE CUT
LENGTHS NEEDED
1WASHR-LC291 (2) ARE SHOWN IN

1FSTNR-HH354 (2) ZONE 4
1FSTNR-HH630 (3) PASS THRU

HOLES IN 9938/9951 AND 1FSTNR-HH354 (2) PASS THRU HOLES IN Aluminum: 110942

110942/110956 AND ARE SECURED 110942/110956 AND ARE SECURED BY THREADS Silver PC: 110956
BY THREADS IN 9937/9950. IN 9384/9950.

Passenger Side Arm Assembly (Aluminum: 110948 & Silver PC: 110957) – Zone 3

SEE ZONE 4

Aluminum: 110793
Black PC: 108671

NO FILLER STRIPS ARE
INCLUDED IN THE ARM
ASSEMBLIES.
Aluminum: 110942
SEE ZONE 4
Silver PC: 110956
1FSTNR-SH882 (6)

76 Belanger, Inc. ®* 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL755
