TopWinder

Maintenance
Exploded Parts

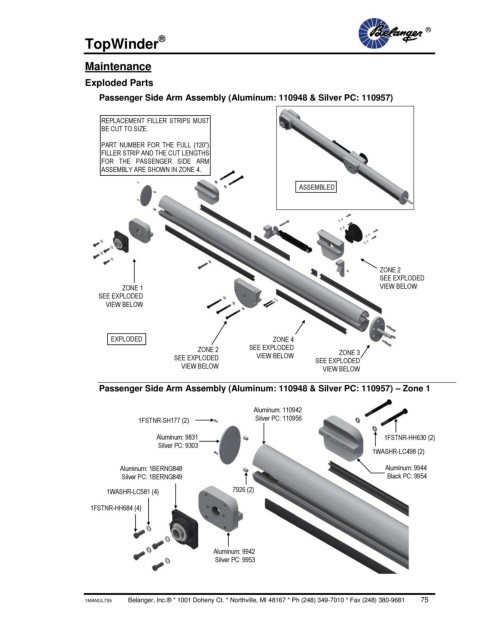

Passenger Side Arm Assembly (Aluminum: 110948 & Silver PC: 110957)

REPLACEMENT FILLER STRIPS MUST

BE CUT TO SIZE.
PART NUMBER FOR THE FULL (120”)

FILLER STRIP AND THE CUT LENGTHS
FOR THE PASSENGER SIDE ARM
ASSEMBLY ARE SHOWN IN ZONE 4.

ASSEMBLED

ZONE 2
SEE EXPLODED
ZONE 1 VIEW BELOW
SEE EXPLODED
VIEW BELOW

EXPLODED ZONE 4
SEE EXPLODED
ZONE 2 ZONE 3
SEE EXPLODED VIEW BELOW SEE EXPLODED
VIEW BELOW VIEW BELOW

Passenger Side Arm Assembly (Aluminum: 110948 & Silver PC: 110957) – Zone 1

Aluminum: 110942
1FSTNR-SH177 (2) Silver PC: 110956

Aluminum: 9831 1FSTNR-HH630 (2)
Silver PC: 9303
1WASHR-LC498 (2)

Aluminum: 1BERNG848 Aluminum: 9944
Silver PC: 1BERNG849 Black PC: 9954

1WASHR-LC581 (4) 7926 (2)
1FSTNR-HH684 (4)

Aluminum: 9942
Silver PC: 9953

1MANUL755 Belanger, Inc.® * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 75
