TopWinder

Maintenance

Exploded Parts

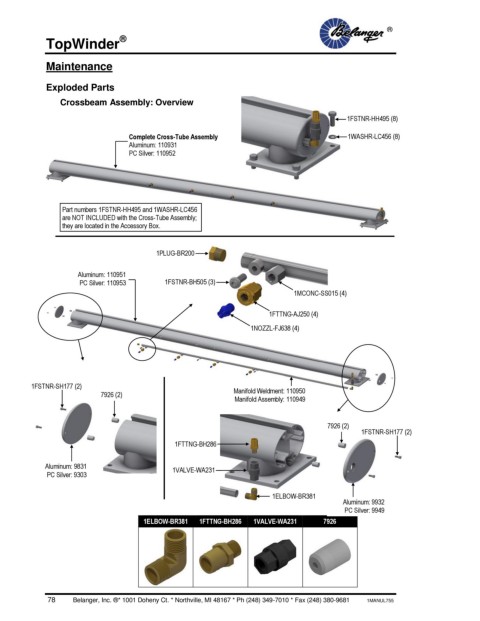

Crossbeam Assembly: Overview
1FSTNR-HH495 (8)

Complete Cross-Tube Assembly 1WASHR-LC456 (8)
Aluminum: 110931
PC Silver: 110952

Part numbers 1FSTNR-HH495 and 1WASHR-LC456
are NOT INCLUDED with the Cross-Tube Assembly;
they are located in the Accessory Box.

1PLUG-BR200

Aluminum: 110951
PC Silver: 110953 1FSTNR-BH505 (3)
1MCONC-SS015 (4)

1FTTNG-AJ250 (4)

1NOZZL-FJ638 (4)

1FSTNR-SH177 (2)
7926 (2) Manifold Weldment: 110950
Manifold Assembly: 110949

7926 (2)
1FSTNR-SH177 (2)
1FTTNG-BH286

Aluminum: 9831 1VALVE-WA231
PC Silver: 9303

1ELBOW-BR381
Aluminum: 9932
PC Silver: 9949
1ELBOW-BR381 1FTTNG-BH286 1VALVE-WA231 7926
