PIVOTING WHEEL STINGER Mix and Match

Maintenance

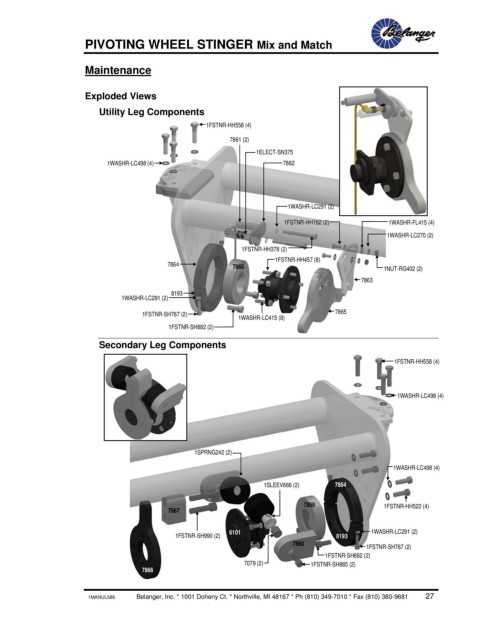

Exploded Views

Utility Leg Components
1FSTNR-HH558 (4)

7861 (2)
1ELECT-SN375
1WASHR-LC498 (4) 7862

1WASHR-LC291 (2)

1FSTNR-HH162 (2) 1WASHR-FL415 (4)
1WASHR-LC270 (2)
1FSTNR-HH378 (2)
1FSTNR-HH457 (8)
7864 7868 1NUT-RG402 (2)
7863
8193
1WASHR-LC291 (2)

1FSTNR-SH767 (2) 7865
1WASHR-LC415 (8)
1FSTNR-SH882 (2)

Secondary Leg Components

1FSTNR-HH558 (4)

1WASHR-LC498 (4)

1SPRNG242 (2)
1WASHR-LC498 (4)

1SLEEV666 (2) 7864

7868 1FSTNR-HH522 (4)
7867

6101 1WASHR-LC291 (2)
1FSTNR-SH990 (2) 8193
7860
1FSTNR-SH767 (2)
1FSTNR-SH882 (2)
7079 (2) 1FSTNR-SH885 (2)
7866

1MANUL586 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 27
