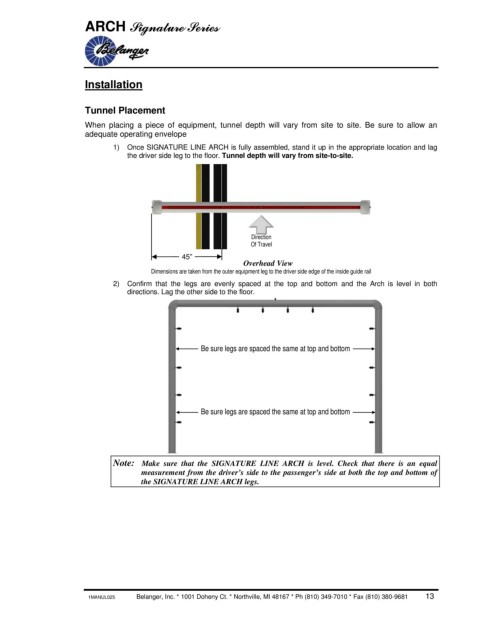

ARCH Signature Series

Installation

Tunnel Placement
When placing a piece of equipment, tunnel depth will vary from site to site. Be sure to allow an
adequate operating envelope
1) Once SIGNATURE LINE ARCH is fully assembled, stand it up in the appropriate location and lag
the driver side leg to the floor. Tunnel depth will vary from site-to-site.

Direction
Of Travel
45”
Overhead View
Dimensions are taken from the outer equipment leg to the driver side edge of the inside guide rail
2) Confirm that the legs are evenly spaced at the top and bottom and the Arch is level in both
directions. Lag the other side to the floor.

Be sure legs are spaced the same at top and bottom

Be sure legs are spaced the same at top and bottom

Note: Make sure that the SIGNATURE LINE ARCH is level. Check that there is an equal
measurement from the driver’s side to the passenger’s side at both the top and bottom of
the SIGNATURE LINE ARCH legs.

1MANUL025 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 13
