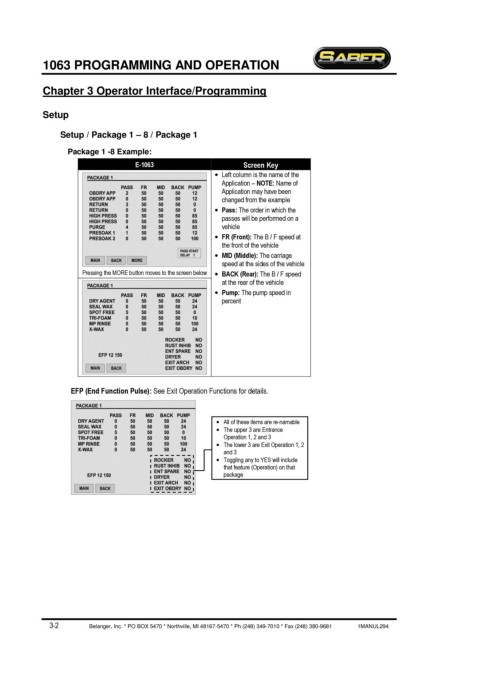

1063 PROGRAMMING AND OPERATION

Chapter 3 Operator Interface/Programming

Setup

Setup / Package 1 – 8 / Package 1

Package 1 -8 Example:
E-1063 Screen Key
· Left column is the name of the
Application – NOTE: Name of
Application may have been
changed from the example
· Pass: The order in which the
passes will be performed on a
vehicle
· FR (Front): The B / F speed at
the front of the vehicle
· MID (Middle): The carriage
speed at the sides of the vehicle
Pressing the MORE button moves to the screen below · BACK (Rear): The B / F speed
at the rear of the vehicle
· Pump: The pump speed in
percent

EFP (End Function Pulse): See Exit Operation Functions for details.

· All of these items are re-namable
· The upper 3 are Entrance
Operation 1, 2 and 3
· The lower 3 are Exit Operation 1, 2
and 3
· Toggling any to YES will include
that feature (Operation) on that
package
