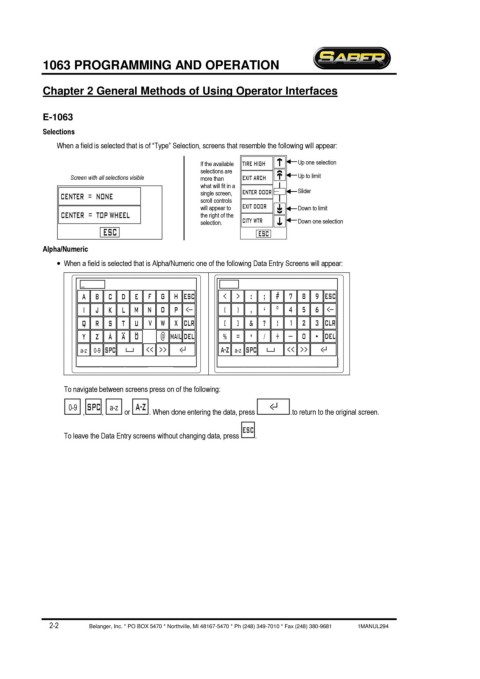

Page 20 - Saber® E-1063 Programming and Operation Manual
P. 20
1063 PROGRAMMING AND OPERATION
Chapter 2 General Methods of Using Operator Interfaces
E-1063
Selections
When a field is selected that is of “Type” Selection, screens that resemble the following will appear:
If the available Up one selection
selections are
Screen with all selections visible more than Up to limit
what will fit in a
Slider
single screen,
scroll controls
will appear to Down to limit
the right of the
selection. Down one selection
Alpha/Numeric
· When a field is selected that is Alpha/Numeric one of the following Data Entry Screens will appear:
To navigate between screens press on of the following:
, , or . When done entering the data, press .to return to the original screen.
To leave the Data Entry screens without changing data, press .
