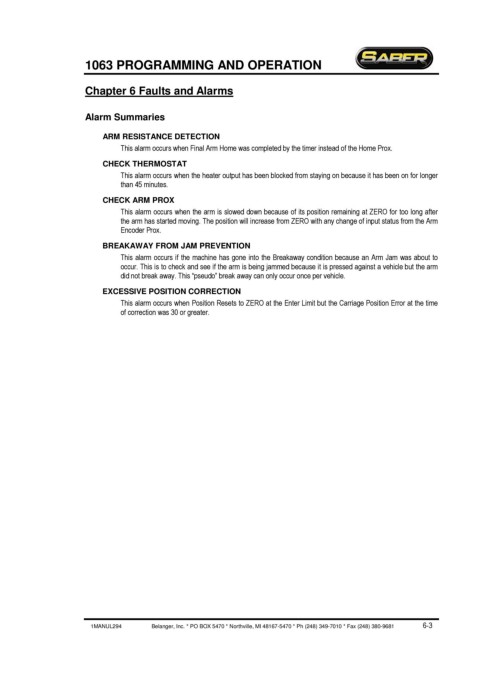

Page 55 - Saber® E-1063 Programming and Operation Manual
P. 55
1063 PROGRAMMING AND OPERATION
Chapter 6 Faults and Alarms
Alarm Summaries
ARM RESISTANCE DETECTION
This alarm occurs when Final Arm Home was completed by the timer instead of the Home Prox.
CHECK THERMOSTAT
This alarm occurs when the heater output has been blocked from staying on because it has been on for longer
than 45 minutes.
CHECK ARM PROX
This alarm occurs when the arm is slowed down because of its position remaining at ZERO for too long after
the arm has started moving. The position will increase from ZERO with any change of input status from the Arm
Encoder Prox.
BREAKAWAY FROM JAM PREVENTION
This alarm occurs if the machine has gone into the Breakaway condition because an Arm Jam was about to
occur. This is to check and see if the arm is being jammed because it is pressed against a vehicle but the arm
did not break away. This “pseudo” break away can only occur once per vehicle.
EXCESSIVE POSITION CORRECTION
This alarm occurs when Position Resets to ZERO at the Enter Limit but the Carriage Position Error at the time
of correction was 30 or greater.
