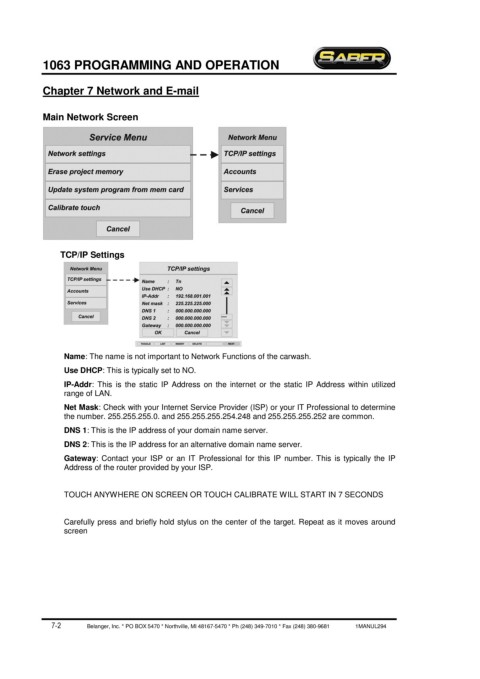

1063 PROGRAMMING AND OPERATION
Chapter 7 Network and E-mail
Main Network Screen
TCP/IP Settings
Name: The name is not important to Network Functions of the carwash.
Use DHCP: This is typically set to NO.
IP-Addr: This is the static IP Address on the internet or the static IP Address within utilized
range of LAN.
Net Mask: Check with your Internet Service Provider (ISP) or your IT Professional to determine
the number. 255.255.255.0. and 255.255.255.254.248 and 255.255.255.252 are common.
DNS 1: This is the IP address of your domain name server.
DNS 2: This is the IP address for an alternative domain name server.
Gateway: Contact your ISP or an IT Professional for this IP number. This is typically the IP
Address of the router provided by your ISP.
TOUCH ANYWHERE ON SCREEN OR TOUCH CALIBRATE WILL START IN 7 SECONDS
Carefully press and briefly hold stylus on the center of the target. Repeat as it moves around
screen
