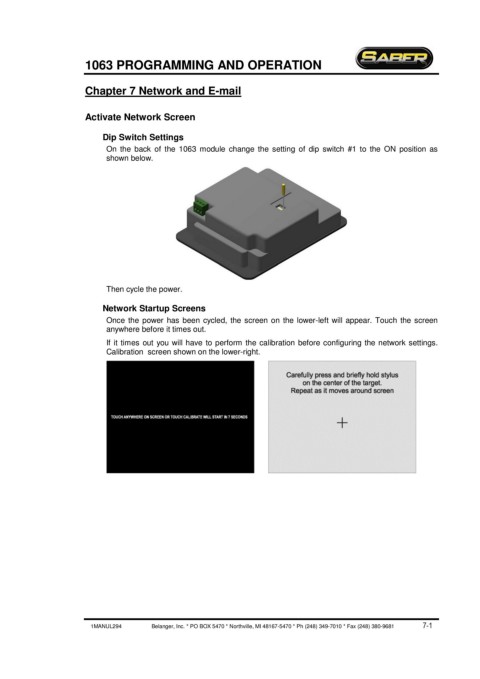

1063 PROGRAMMING AND OPERATION
Chapter 7 Network and E-mail
Activate Network Screen
Dip Switch Settings
On the back of the 1063 module change the setting of dip switch #1 to the ON position as
shown below.
Then cycle the power.
Network Startup Screens
Once the power has been cycled, the screen on the lower-left will appear. Touch the screen
anywhere before it times out.
If it times out you will have to perform the calibration before configuring the network settings.
Calibration screen shown on the lower-right.
