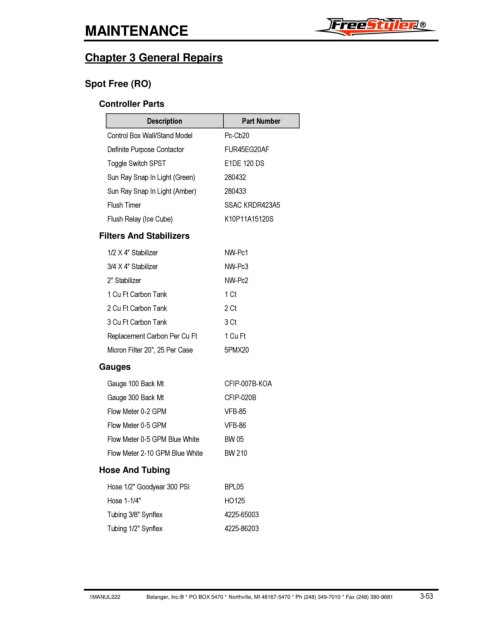

Page 117 - FreeStyler® Maintenance Manual
P. 117
®
MAINTENANCE
Chapter 3 General Repairs
Spot Free (RO)
Controller Parts
Description Part Number
Control Box Wall/Stand Model Pc-Cb20
Definite Purpose Contactor FUR45EG20AF
Toggle Switch SPST E1DE 120 DS
Sun Ray Snap In Light (Green) 280432
Sun Ray Snap In Light (Amber) 280433
Flush Timer SSAC KRDR423A5
Flush Relay (Ice Cube) K10P11A15120S
Filters And Stabilizers
1/2 X 4" Stabilizer NW-Pc1
3/4 X 4" Stabilizer NW-Pc3
2" Stabilizer NW-Pc2
1 Cu Ft Carbon Tank 1 Ct
2 Cu Ft Carbon Tank 2 Ct
3 Cu Ft Carbon Tank 3 Ct
Replacement Carbon Per Cu Ft 1 Cu Ft
Micron Filter 20", 25 Per Case 5PMX20
Gauges
Gauge 100 Back Mt CFIP-007B-KOA
Gauge 300 Back Mt CFIP-020B
Flow Meter 0-2 GPM VFB-85
Flow Meter 0-5 GPM VFB-86
Flow Meter 0-5 GPM Blue White BW 05
Flow Meter 2-10 GPM Blue White BW 210
Hose And Tubing
Hose 1/2" Goodyear 300 PSI BPL05
Hose 1-1/4" HO125
Tubing 3/8" Synflex 4225-65003
Tubing 1/2" Synflex 4225-86203
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 3-53
