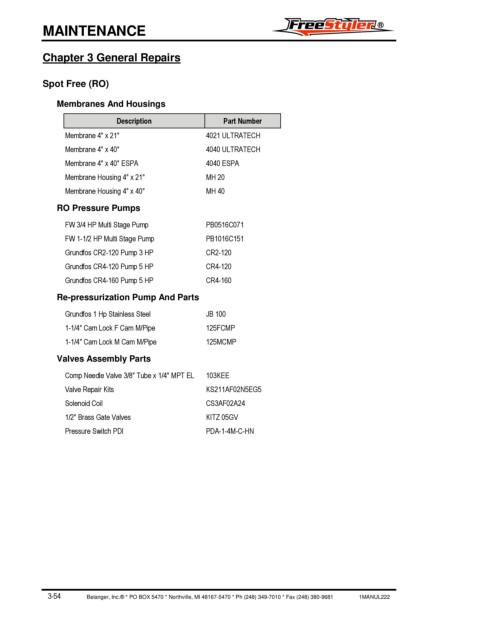

Page 118 - FreeStyler® Maintenance Manual

®
MAINTENANCE

Chapter 3 General Repairs

Spot Free (RO)

Membranes And Housings
Description Part Number

Membrane 4" x 21" 4021 ULTRATECH
Membrane 4" x 40" 4040 ULTRATECH
Membrane 4" x 40" ESPA 4040 ESPA

Membrane Housing 4" x 21" MH 20
Membrane Housing 4" x 40" MH 40
RO Pressure Pumps

FW 3/4 HP Multi Stage Pump PB0516C071
FW 1-1/2 HP Multi Stage Pump PB1016C151

Grundfos CR2-120 Pump 3 HP CR2-120
Grundfos CR4-120 Pump 5 HP CR4-120
Grundfos CR4-160 Pump 5 HP CR4-160

Re-pressurization Pump And Parts
Grundfos 1 Hp Stainless Steel JB 100

1-1/4" Cam Lock F Cam M/Pipe 125FCMP
1-1/4" Cam Lock M Cam M/Pipe 125MCMP
Valves Assembly Parts

Comp Needle Valve 3/8" Tube x 1/4" MPT EL 103KEE
Valve Repair Kits KS211AF02N5EG5

Solenoid Coil CS3AF02A24
1/2" Brass Gate Valves KITZ 05GV
Pressure Switch PDI PDA-1-4M-C-HN

3-54 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL222
