MAINTENANCE

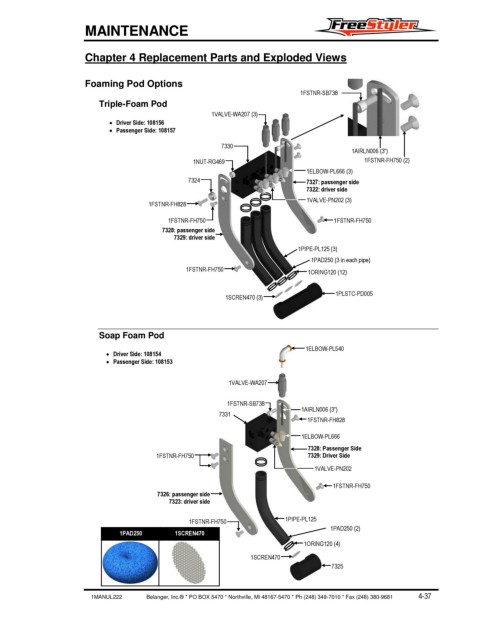

Chapter 4 Replacement Parts and Exploded Views

Foaming Pod Options
1FSTNR-SB738
Triple-Foam Pod
1VALVE-WA207 (3)
 Driver Side: 108156
 Passenger Side: 108157

7330
1AIRLN006 (3”)
1NUT-RG469 1FSTNR-FH750 (2)
1ELBOW-PL666 (3)
7324 7327: passenger side
7322: driver side
1VALVE-PN202 (3)
1FSTNR-FH828
1FSTNR-FH750 1FSTNR-FH750
7328: passenger side
7329: driver side
1PIPE-PL125 (3)
1PAD250 (3 in each pipe)
1FSTNR-FH750 1ORING120 (12)

1PLSTC-PD005
1SCREN470 (3)

Soap Foam Pod
1ELBOW-PL540
 Driver Side: 108154
 Passenger Side: 108153

1VALVE-WA207

7331
1FSTNR-SB738
1AIRLN006 (3”)
7331
1FSTNR-FH828
1ELBOW-PL666
7328: Passenger Side
1FSTNR-FH750 7329: Driver Side
1VALVE-PN202

1FSTNR-FH750
7326: passenger side
7323: driver side

1FSTNR-FH750 1PIPE-PL125
1PAD250 (2)
1PAD250 1SCREN470
1ORING120 (4)
1SCREN470
7325

1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-37
