MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

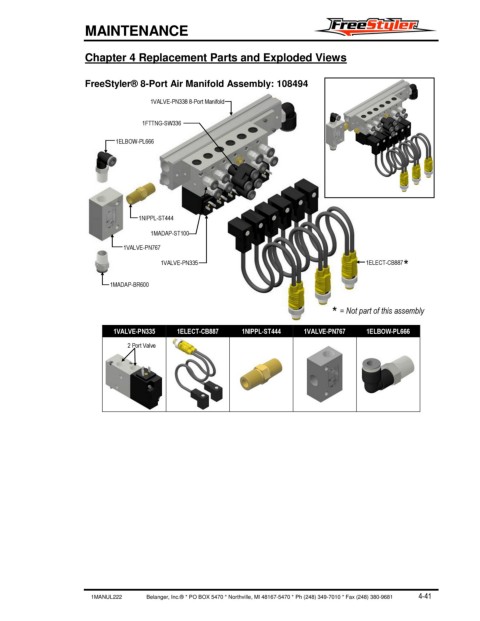

FreeStyler® 8-Port Air Manifold Assembly: 108494
1VALVE-PN338 8-Port Manifold
1FTTNG-SW336
1ELBOW-PL666
1NIPPL-ST444
1MADAP-ST100
1VALVE-PN767
1VALVE-PN335 1ELECT-CB887 *
(3)
1MADAP-BR600
* = Not part of this assembly
1VALVE-PN335 1ELECT-CB887 1NIPPL-ST444 1VALVE-PN767 1ELBOW-PL666
2 Port Valve
