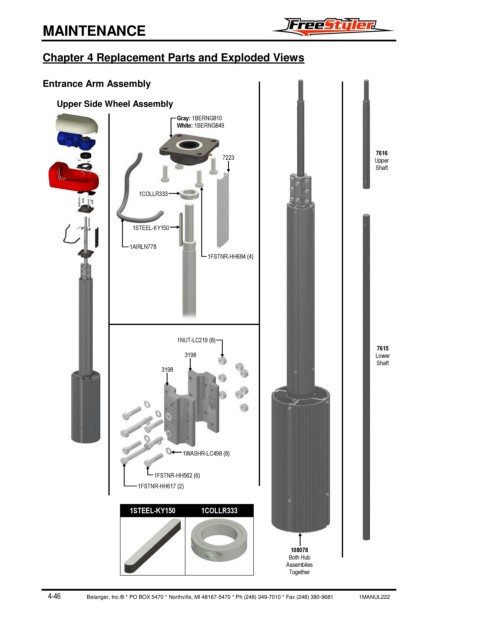

Chapter 4 Replacement Parts and Exploded Views
Entrance Arm Assembly
Upper Side Wheel Assembly
Gray: 1BERNG810
White: 1BERNG849
7616
7223 Upper
Shaft
1COLLR333
1STEEL-KY150
1AIRLN778
1FSTNR-HH684 (4)
1NUT-LC219 (8)
7615
3198 Lower
Shaft
3198
1WASHR-LC498 (8)
1FSTNR-HH562 (6)
1FSTNR-HH617 (2)
1STEEL-KY150 1COLLR333
108078
Both Hub
Assemblies
Together
