MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

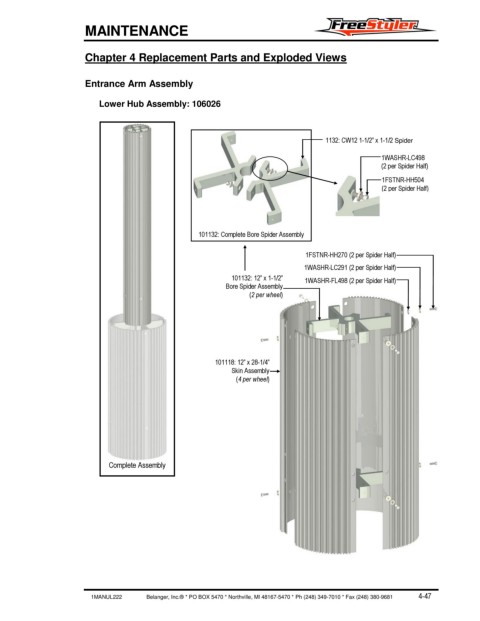

Entrance Arm Assembly
Lower Hub Assembly: 106026
1132: CW12 1-1/2” x 1-1/2 Spider
Half
1WASHR-LC498
(2 per Spider Half)
1FSTNR-HH504
(2 per Spider Half)
101132: Complete Bore Spider Assembly
1FSTNR-HH270 (2 per Spider Half)
1WASHR-LC291 (2 per Spider Half)
101132: 12” x 1-1/2” 1WASHR-FL498 (2 per Spider Half)
Bore Spider Assembly
(2 per wheel)
101118: 12” x 28-1/4”
Skin Assembly
(4 per wheel)
Complete Assembly
