Page 252 - FreeStyler® Maintenance Manual

MAINTENANCE

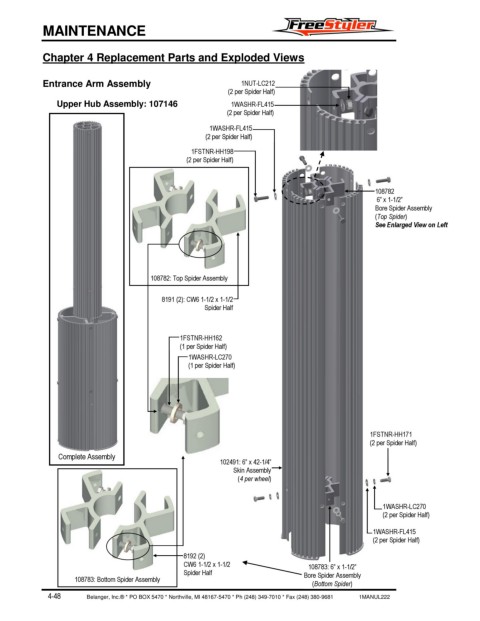

Chapter 4 Replacement Parts and Exploded Views

Entrance Arm Assembly 1NUT-LC212
(2 per Spider Half)
Upper Hub Assembly: 107146 1WASHR-FL415
(2 per Spider Half)

1WASHR-FL415
(2 per Spider Half)

1FSTNR-HH198
(2 per Spider Half)

108782
6” x 1-1/2”
Bore Spider Assembly
(Top Spider)
See Enlarged View on Left

108782: Top Spider Assembly

8191 (2): CW6 1-1/2 x 1-1/2
Spider Half

1FSTNR-HH162
(1 per Spider Half)
1WASHR-LC270
(1 per Spider Half)

1FSTNR-HH171
(2 per Spider Half)

Complete Assembly
102491: 6” x 42-1/4”
Skin Assembly
(4 per wheel)

1WASHR-LC270
(2 per Spider Half)
1WASHR-FL415
(2 per Spider Half)
8192 (2)
CW6 1-1/2 x 1-1/2 108783: 6” x 1-1/2”
Spider Half Bore Spider Assembly
108783: Bottom Spider Assembly
(Bottom Spider)
