MAINTENANCE

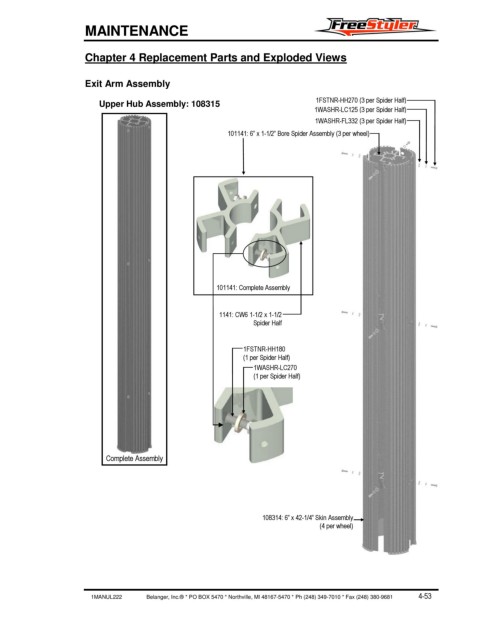

Chapter 4 Replacement Parts and Exploded Views
Exit Arm Assembly
Upper Hub Assembly: 108315 1FSTNR-HH270 (3 per Spider Half)
1WASHR-LC125 (3 per Spider Half)
1WASHR-FL332 (3 per Spider Half)
101141: 6” x 1-1/2” Bore Spider Assembly (3 per wheel)
101141: Complete Assembly
1141: CW6 1-1/2 x 1-1/2
Spider Half
1FSTNR-HH180
(1 per Spider Half)
1WASHR-LC270
(1 per Spider Half)
Complete Assembly
108314: 6” x 42-1/4” Skin Assembly
(4 per wheel)
