MAINTENANCE

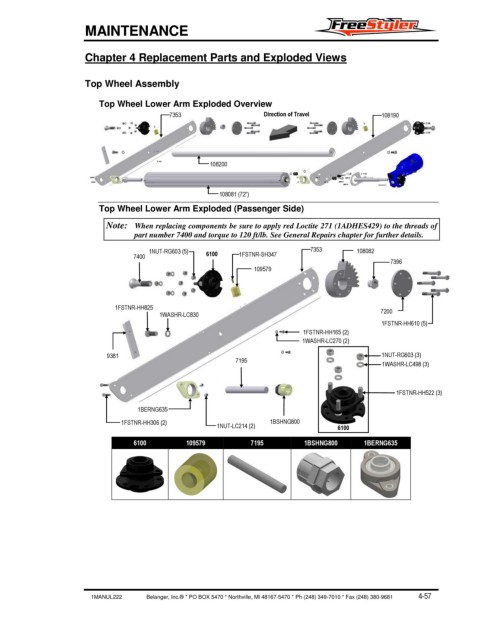

Chapter 4 Replacement Parts and Exploded Views
Top Wheel Assembly
Top Wheel Lower Arm Exploded Overview
7353 Direction of Travel 108190
108200
108081 (72”)
Top Wheel Lower Arm Exploded (Passenger Side)
Note: When replacing components be sure to apply red Loctite 271 (1ADHES429) to the threads of
part number 7400 and torque to 120 ft/lb. See General Repairs chapter for further details.
1NUT-RG603 (5) 7353 108082
7400 6100 1FSTNR-SH347
7396
109579
1FSTNR-HH825 ????? (2) 7200
1WASHR-LC830
1FSTNR-HH610 (5)
1FSTNR-HH165 (2)
1WASHR-LC270 (2)
9381 1NUT-RG603 (3)
7195
1WASHR-LC498 (3)
1FSTNR-HH522 (3)
1BERNG635
1FSTNR-HH306 (2) 1BSHNG800
1NUT-LC214 (2) 6100
6100 109579 7195 1BSHNG800 1BERNG635
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-57
