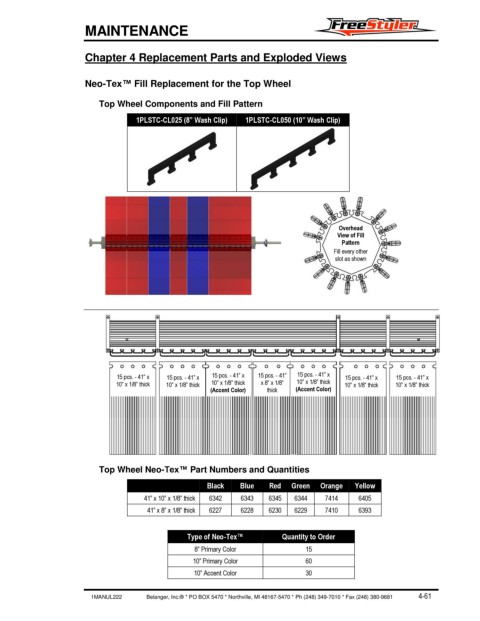

MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Neo-Tex™ Fill Replacement for the Top Wheel
Top Wheel Components and Fill Pattern
1PLSTC-CL025 (8” Wash Clip) 1PLSTC-CL050 (10” Wash Clip)
Overhead
View of Fill
Pattern
Fill every other
slot as shown
15 pcs. - 41” x 15 pcs. - 41” x 15 pcs. - 41” x 15 pcs. - 41” 15 pcs. - 41” x 15 pcs. - 41” x 15 pcs. - 41” x
10” x 1/8” thick 10” x 1/8” thick 10” x 1/8” thick x 8” x 1/8” 10” x 1/8” thick 10” x 1/8” thick 10” x 1/8” thick
(Accent Color) thick (Accent Color)
hick
Top Wheel Neo-Tex™ Part Numbers and Quantities
Black Blue Red Green Orange Yellow
41” x 10” x 1/8” thick 6342 6343 6345 6344 7414 6405
41” x 8” x 1/8” thick 6227 6228 6230 6229 7410 6393
Type of Neo-Tex™ Quantity to Order
8” Primary Color 15
10” Primary Color 60
10” Accent Color 30
