MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

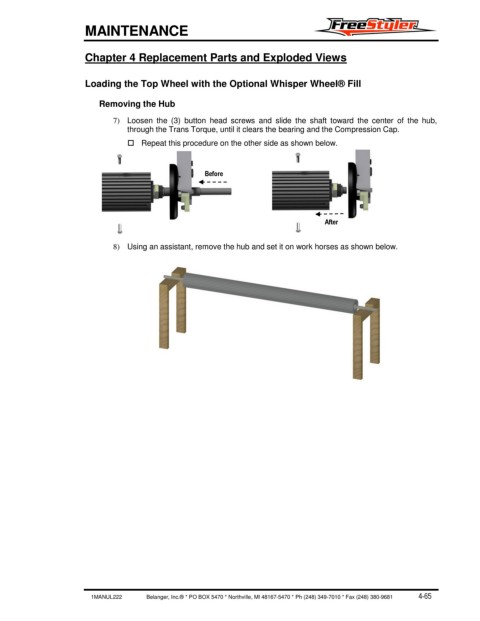

Loading the Top Wheel with the Optional Whisper Wheel® Fill
Removing the Hub
7) Loosen the (3) button head screws and slide the shaft toward the center of the hub,
through the Trans Torque, until it clears the bearing and the Compression Cap.
Repeat this procedure on the other side as shown below.
Before
After
8) Using an assistant, remove the hub and set it on work horses as shown below.
