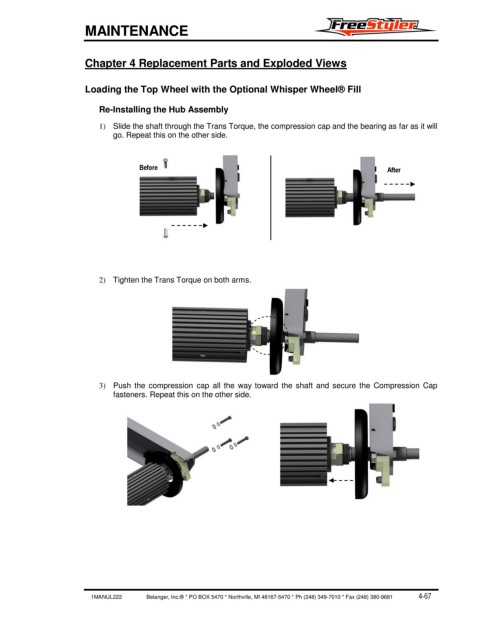

Page 271 - FreeStyler® Maintenance Manual
P. 271
MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Loading the Top Wheel with the Optional Whisper Wheel® Fill
Re-Installing the Hub Assembly
1) Slide the shaft through the Trans Torque, the compression cap and the bearing as far as it will
go. Repeat this on the other side.
Before After
2) Tighten the Trans Torque on both arms.
3) Push the compression cap all the way toward the shaft and secure the Compression Cap
fasteners. Repeat this on the other side.
