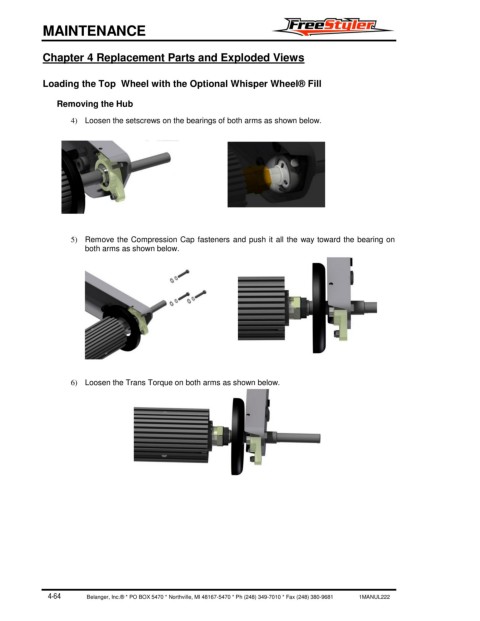

MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Loading the Top Wheel with the Optional Whisper Wheel® Fill
Removing the Hub
4) Loosen the setscrews on the bearings of both arms as shown below.
5) Remove the Compression Cap fasteners and push it all the way toward the bearing on
both arms as shown below.
6) Loosen the Trans Torque on both arms as shown below.
