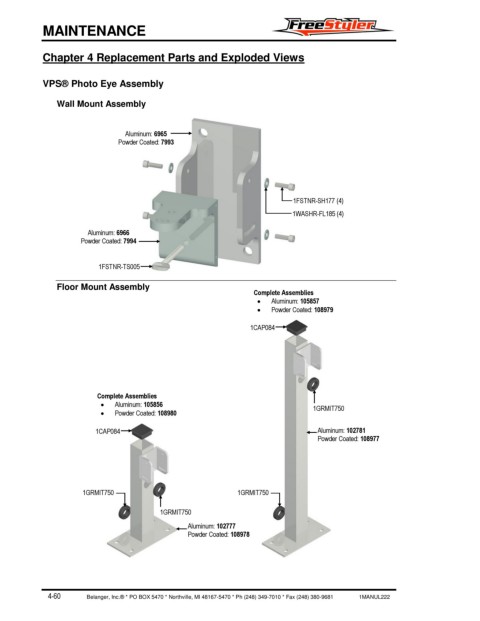

MAINTENANCE


            Chapter 4 Replacement Parts and Exploded Views


            VPS® Photo Eye Assembly


               Wall Mount Assembly



                                 Aluminum: 6965
                               Powder Coated: 7993







                                                                            1FSTNR-SH177 (4)
                                                                            1WASHR-FL185 (4)

                       Aluminum: 6966
                      Powder Coated: 7994


                          1FSTNR-TS005

               Floor Mount Assembly
                                                                  Complete Assemblies
                                                                      Aluminum: 105857
                                                                      Powder Coated: 108979

                                                                 1CAP084








                          Complete Assemblies
                              Aluminum: 105856                                  1GRMIT750
                              Powder Coated: 108980

                         1CAP084                                                  Aluminum: 102781
                                                                                  Powder Coated: 108977






                      1GRMIT750                               1GRMIT750

                                          1GRMIT750
                                                 Aluminum: 102777
                                                 Powder Coated: 108978
