MAINTENANCE

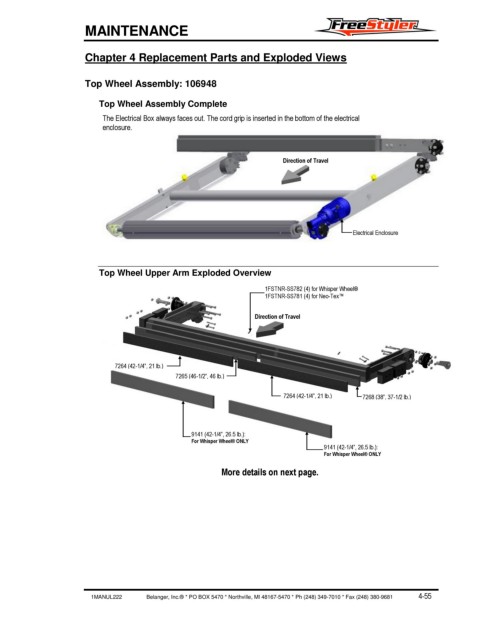

Chapter 4 Replacement Parts and Exploded Views
Top Wheel Assembly: 106948
Top Wheel Assembly Complete
The Electrical Box always faces out. The cord grip is inserted in the bottom of the electrical
enclosure.
Direction of Travel
Electrical Enclosure
Top Wheel Upper Arm Exploded Overview
1FSTNR-SS782 (4) for Whisper Wheel®
1FSTNR-SS781 (4) for Neo-Tex™
Direction of Travel
7264 (42-1/4”, 21 lb.)
7265 (46-1/2”, 46 lb.)
7264 (42-1/4”, 21 lb.) 7268 (38”, 37-1/2 lb.)
9141 (42-1/4”, 26.5 lb.):
For Whisper Wheel® ONLY
9141 (42-1/4”, 26.5 lb.):
For Whisper Wheel® ONLY
More details on next page.
