MAINTENANCE

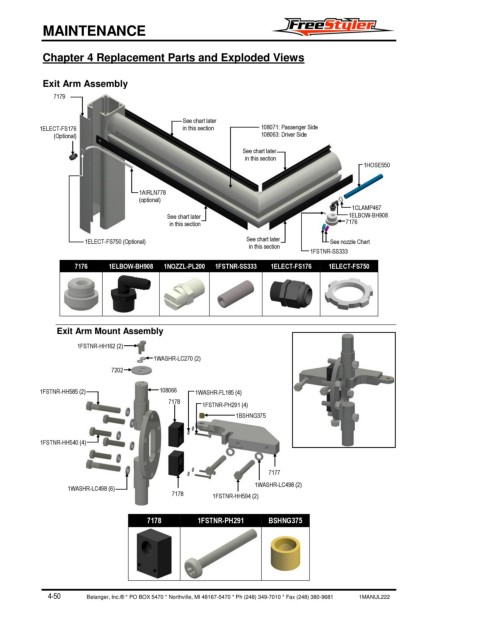

Chapter 4 Replacement Parts and Exploded Views
Exit Arm Assembly
7179
See chart later
1ELECT-FS176 in this section 108071: Passenger Side
(Optional) 108063: Driver Side
See chart later
in this section
1HOSE550
1AIRLN778
(optional)
1CLAMP467
See chart later 1ELBOW-BH908
in this section 7176
1ELECT-FS750 (Optional) See chart later See nozzle Chart
in this section
1FSTNR-SS333
7176 1ELBOW-BH908 1NOZZL-PL200 1FSTNR-SS333 1ELECT-FS176 1ELECT-FS750
Exit Arm Mount Assembly
1FSTNR-HH162 (2)
1WASHR-LC270 (2)
7202
1FSTNR-HH585 (2) 108066 1WASHR-FL185 (4)
7178
1FSTNR-PH291 (4)
1BSHNG375
1FSTNR-HH540 (4)
7177
1WASHR-LC498 (2)
1WASHR-LC498 (6)
7178 1FSTNR-HH594 (2)
7178 1FSTNR-PH291 BSHNG375
