MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

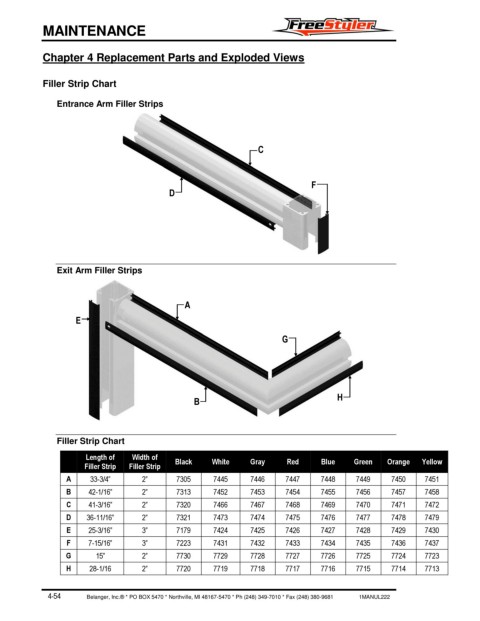

Filler Strip Chart
Entrance Arm Filler Strips
C
F
D
Exit Arm Filler Strips
A
E
G
B H
Filler Strip Chart
Length of Width of
Black White Gray Red Blue Green Orange Yellow
Filler Strip Filler Strip
A 33-3/4” 2” 7305 7445 7446 7447 7448 7449 7450 7451
B 42-1/16” 2” 7313 7452 7453 7454 7455 7456 7457 7458
C 41-3/16” 2” 7320 7466 7467 7468 7469 7470 7471 7472
D 36-11/16” 2” 7321 7473 7474 7475 7476 7477 7478 7479
E 25-3/16” 3” 7179 7424 7425 7426 7427 7428 7429 7430
F 7-15/16” 3” 7223 7431 7432 7433 7434 7435 7436 7437
G 15” 2” 7730 7729 7728 7727 7726 7725 7724 7723
H 28-1/16 2” 7720 7719 7718 7717 7716 7715 7714 7713
