MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Top Wheel Assembly

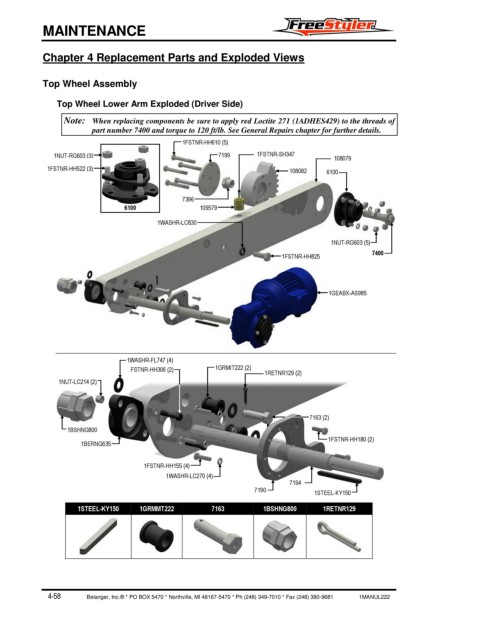

Top Wheel Lower Arm Exploded (Driver Side)
Note: When replacing components be sure to apply red Loctite 271 (1ADHES429) to the threads of
part number 7400 and torque to 120 ft/lb. See General Repairs chapter for further details.
1FSTNR-HH610 (5)
1NUT-RG603 (3) 7199 1FSTNR-SH347 108079
1FSTNR-HH522 (3) 108082 6100
7396
6100 109579
1WASHR-LC830
1NUT-RG603 (5)
7400
1FSTNR-HH825
1GEABX-AS985
1WASHR-FL747 (4)
FSTNR-HH306 (2) 1GRMIT222 (2)
1RETNR129 (2)
1NUT-LC214 (2)
7163 (2)
1BSHNG800
1FSTNR-HH180 (2)
1BERNG635
1FSTNR-HH155 (4)
1WASHR-LC270 (4)
7194
7190 1STEEL-KY150
1STEEL-KY150 1GRMMT222 7163 1BSHNG800 1RETNR129
