MAINTENANCE

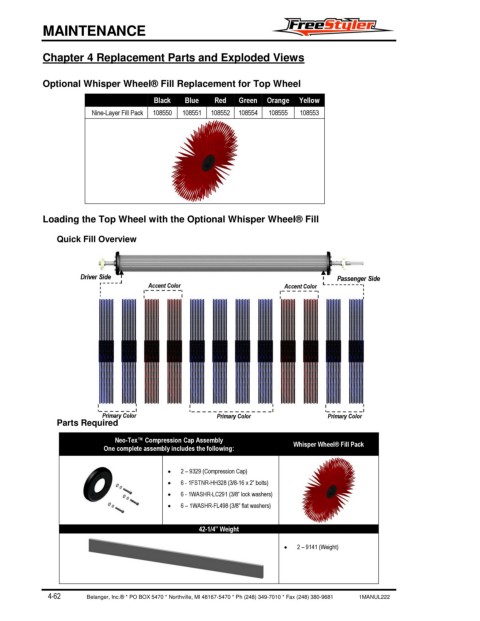

Chapter 4 Replacement Parts and Exploded Views
Optional Whisper Wheel® Fill Replacement for Top Wheel
Black Blue Red Green Orange Yellow
Nine-Layer Fill Pack 108550 108551 108552 108554 108555 108553
Loading the Top Wheel with the Optional Whisper Wheel® Fill
Quick Fill Overview
Driver Side Passenger Side
Accent Color Accent Color
Primary Color Primary Color Primary Color
Parts Required
Neo-Tex™ Compression Cap Assembly
One complete assembly includes the following: Whisper Wheel® Fill Pack
2 – 9329 (Compression Cap)
6 - 1FSTNR-HH328 (3/8-16 x 2” bolts)
6 - 1WASHR-LC291 (3/8” lock washers)
6 – 1WASHR-FL498 (3/8” flat washers)
42-1/4” Weight
2 – 9141 (Weight)
