MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

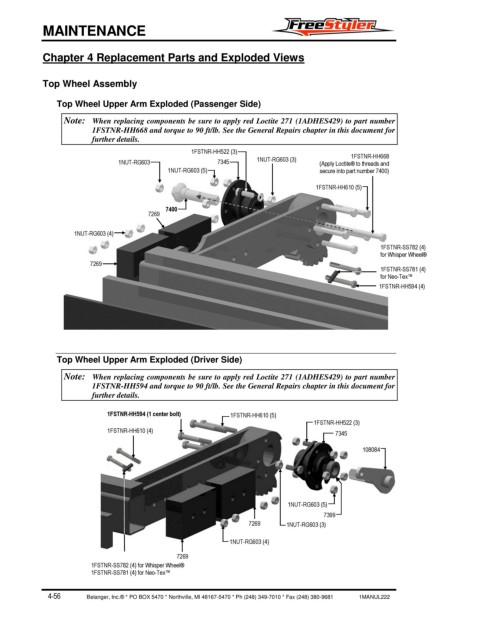

Top Wheel Assembly
Top Wheel Upper Arm Exploded (Passenger Side)
Note: When replacing components be sure to apply red Loctite 271 (1ADHES429) to part number
1FSTNR-HH668 and torque to 90 ft/lb. See the General Repairs chapter in this document for
further details.
1FSTNR-HH522 (3) 1FSTNR-HH668
1NUT-RG603 7345 1NUT-RG603 (3) (Apply Loctite® to threads and
1NUT-RG603 (5) secure into part number 7400)
1FSTNR-HH610 (5)
7400
7269
1NUT-RG603 (4)
1FSTNR-SS782 (4)
for Whisper Wheel®
7269
1FSTNR-SS781 (4)
for Neo-Tex™
1FSTNR-HH594 (4)
Top Wheel Upper Arm Exploded (Driver Side)
Note: When replacing components be sure to apply red Loctite 271 (1ADHES429) to part number
1FSTNR-HH594 and torque to 90 ft/lb. See the General Repairs chapter in this document for
further details.
1FSTNR-HH594 (1 center bolt) 1FSTNR-HH610 (5)
1FSTNR-HH522 (3)
1FSTNR-HH610 (4) 7345
108084
1NUT-RG603 (5)
7399
7269 1NUT-RG603 (3)
1NUT-RG603 (4)
7269
1FSTNR-SS782 (4) for Whisper Wheel®
1FSTNR-SS781 (4) for Neo-Tex™
