MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

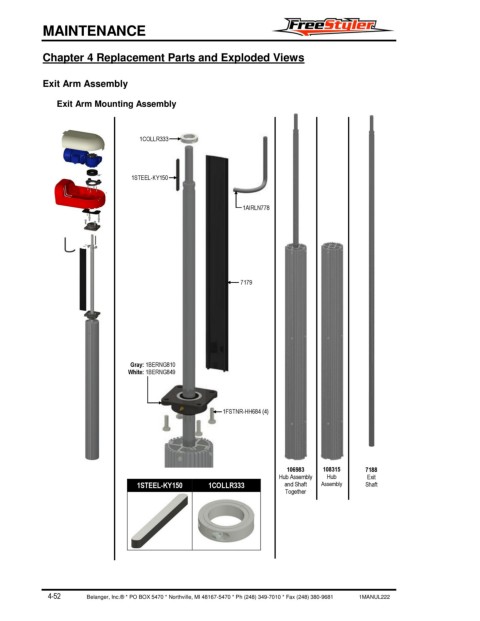

Exit Arm Assembly
Exit Arm Mounting Assembly
1COLLR333
1STEEL-KY150
1AIRLN778
7179
Gray: 1BERNG810
White: 1BERNG849
1FSTNR-HH684 (4)
106983 108315 7188
Hub Assembly Hub Exit
1STEEL-KY150 1COLLR333 and Shaft Assembly Shaft
Together
