MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

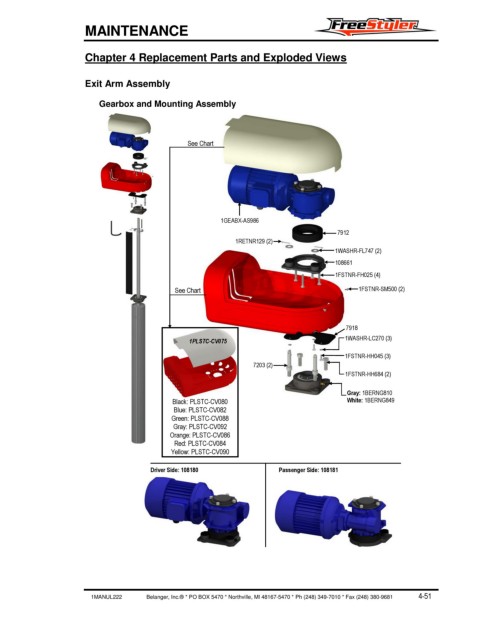

Exit Arm Assembly
Gearbox and Mounting Assembly
See Chart
1GEABX-AS986
7912
1RETNR129 (2)
1WASHR-FL747 (2)
108661
1FSTNR-FH025 (4)
See Chart 1FSTNR-SM500 (2)
7918
1WASHR-LC270 (3)
1PLSTC-CV075
1BERNG810
1FSTNR-HH045 (3)
7203 (2)
1FSTNR-HH684 (2)
Gray: 1BERNG810
Black: PLSTC-CV080 White: 1BERNG849
Blue: PLSTC-CV082
Green: PLSTC-CV088
Gray: PLSTC-CV092
Orange: PLSTC-CV086
Red: PLSTC-CV084
Yellow: PLSTC-CV090
Driver Side: 108180 Passenger Side: 108181
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-51
