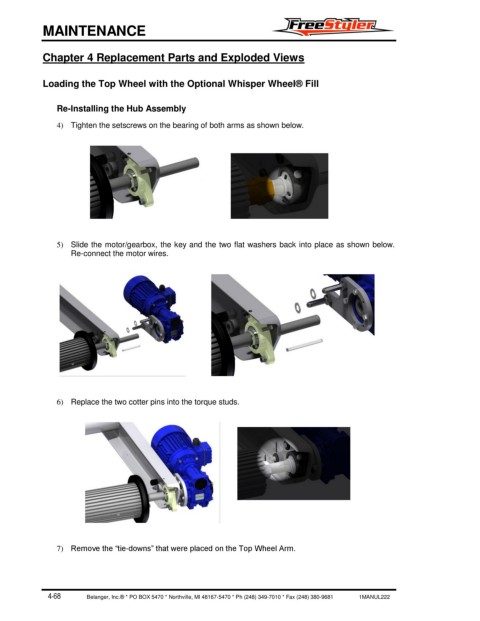

MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Loading the Top Wheel with the Optional Whisper Wheel® Fill
Re-Installing the Hub Assembly
4) Tighten the setscrews on the bearing of both arms as shown below.
5) Slide the motor/gearbox, the key and the two flat washers back into place as shown below.
Re-connect the motor wires.
6) Replace the two cotter pins into the torque studs.
7) Remove the “tie-downs” that were placed on the Top Wheel Arm.
