MAINTENANCE

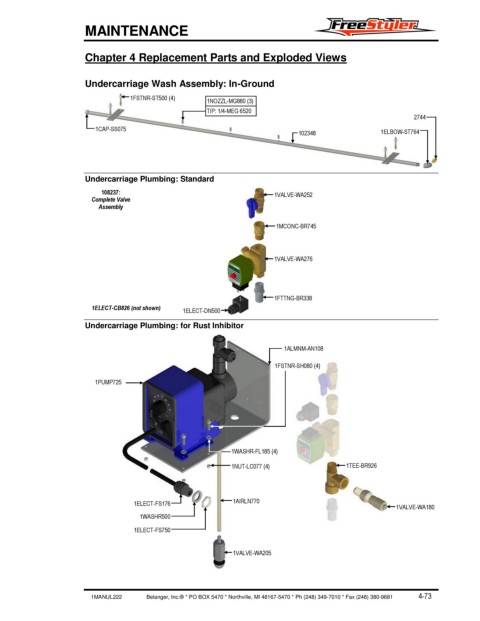

Chapter 4 Replacement Parts and Exploded Views
Undercarriage Wash Assembly: In-Ground
1FSTNR-ST500 (4)
1NOZZL-MG880 (3)
TIP: 1/4-MEG 6520
2744
1CAP-SS075
102348 1ELBOW-ST764
Undercarriage Plumbing: Standard
108237: 1VALVE-WA252
Complete Valve
Assembly
1MCONC-BR745
1VALVE-WA276
1FTTNG-BR338
1ELECT-CB826 (not shown)
1ELECT-DN500
Undercarriage Plumbing: for Rust Inhibitor
1ALMNM-AN108
1FSTNR-SH080 (4)
1PUMP725
1WASHR-FL185 (4)
1NUT-LC077 (4) 1TEE-BR926
1ELECT-FS176 1AIRLN770
1VALVE-WA180
1WASHR500
1ELECT-FS750
1VALVE-WA205
