Page 276 - FreeStyler® Maintenance Manual

MAINTENANCE

Chapter 4 Replacement Parts and Exploded Views

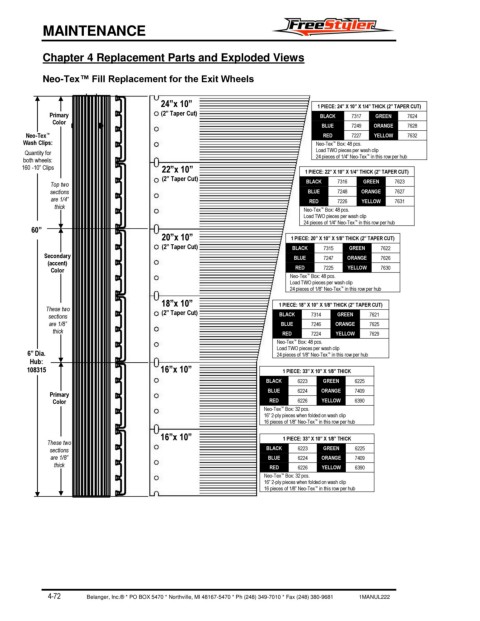

Neo-Tex™ Fill Replacement for the Exit Wheels

24”x 10” 1 PIECE: 24” X 10” X 1/4” THICK (2” TAPER CUT)
Primary (2” Taper Cut) BLACK 7317 GREEN 7624
Color BLUE 7249 ORANGE 7628

™
Neo-Tex RED 7227 YELLOW 7632
Wash Clips: Neo-Tex Box: 48 pcs.
™

Quantity for Load TWO pieces per wash clip
™
both wheels: 24 pieces of 1/4” Neo-Tex in this row per hub

160 -10” Clips 22”x 10” 1 PIECE: 22” X 10” X 1/4” THICK (2” TAPER CUT)
(2” Taper Cut)
Top two BLACK 7316 GREEN 7623
sections BLUE 7248 ORANGE 7627
are 1/4” RED 7226 YELLOW 7631
thick ™
Neo-Tex Box: 48 pcs.
Load TWO pieces per wash clip
24 pieces of 1/4” Neo-Tex in this row per hub
™
60”
20”x 10” 1 PIECE: 20” X 10” X 1/8” THICK (2” TAPER CUT)
(2” Taper Cut) BLACK 7315 GREEN 7622
Secondary BLUE 7247 ORANGE 7626
(accent)
Color RED 7225 YELLOW 7630
™
Neo-Tex Box: 48 pcs.
Load TWO pieces per wash clip
™
24 pieces of 1/8” Neo-Tex in this row per hub

18”x 10” 1 PIECE: 18” X 10” X 1/8” THICK (2” TAPER CUT)
These two (2” Taper Cut)
sections BLACK 7314 GREEN 7621
are 1/8” BLUE 7246 ORANGE 7625
thick RED 7224 YELLOW 7629
Neo-Tex Box: 48 pcs.
™
Load TWO pieces per wash clip
6” Dia. 24 pieces of 1/8” Neo-Tex in this row per hub
™
Hub:
108315 16”x 10” 1 PIECE: 33” X 10” X 1/8” THICK
BLACK 6223 GREEN 6225
BLUE 6224 ORANGE 7409
Primary
Color RED 6226 YELLOW 6390
Neo-Tex Box: 32 pcs.
™
16” 2-ply pieces when folded on wash clip
™
16 pieces of 1/8” Neo-Tex in this row per hub

16”x 10” 1 PIECE: 33” X 10” X 1/8” THICK
These two
sections BLACK 6223 GREEN 6225
are 1/8” BLUE 6224 ORANGE 7409
thick RED 6226 YELLOW 6390
Neo-Tex Box: 32 pcs.
™
16” 2-ply pieces when folded on wash clip
16 pieces of 1/8” Neo-Tex in this row per hub
™
