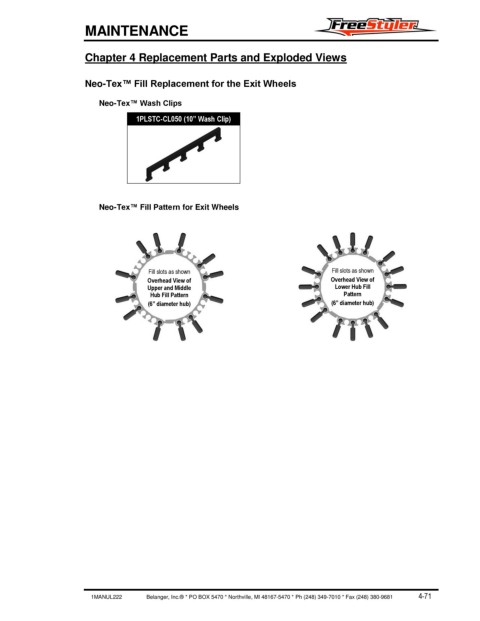

MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Neo-Tex™ Fill Replacement for the Exit Wheels
Neo-Tex™ Wash Clips
1PLSTC-CL050 (10” Wash Clip)
Neo-Tex™ Fill Pattern for Exit Wheels
Fill slots as shown Fill slots as shown
Overhead View of Overhead View of
Upper and Middle Lower Hub Fill
Hub Fill Pattern Pattern
(6” diameter hub) (6” diameter hub)
