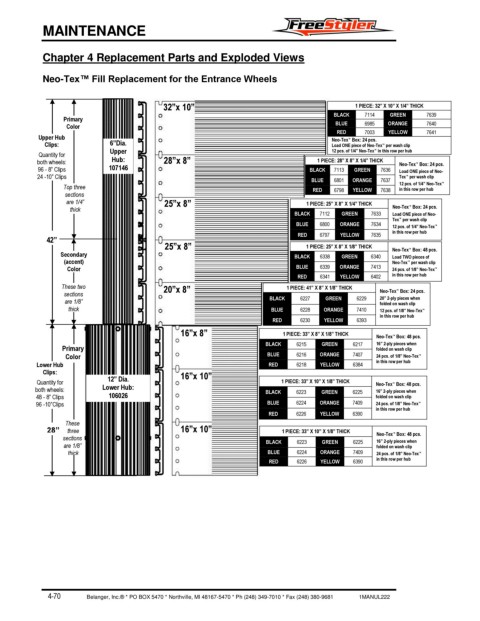

Page 274 - FreeStyler® Maintenance Manual

MAINTENANCE

Chapter 4 Replacement Parts and Exploded Views

Neo-Tex™ Fill Replacement for the Entrance Wheels

32”x 10” 1 PIECE: 32” X 10” X 1/4” THICK
BLACK 7114 GREEN 7639
Primary
Color BLUE 6985 ORANGE 7640
RED
7003

Upper Hub Neo-Tex ™ Box: 24 pcs. YELLOW 7641
Clips: 6”Dia. Load ONE piece of Neo-Tex ™ per wash clip
Upper 12 pcs. of 1/4” Neo-Tex ™ in this row per hub
Quantity for

both wheels: Hub: 28”x 8” 1 PIECE: 28” X 8” X 1/4” THICK Neo-Tex ™ Box: 24 pcs.
96 - 8” Clips 107146 BLACK 7113 GREEN 7636 Load ONE piece of Neo-
24 -10” Clips Tex ™ per wash clip
BLUE 6801 ORANGE 7637 12 pcs. of 1/4” Neo-Tex ™
Top three RED 6798 YELLOW 7638 in this row per hub
sections
are 1/4” 25”x 8” 1 PIECE: 25” X 8” X 1/4” THICK
thick Neo-Tex ™ Box: 24 pcs.
BLACK 7112 GREEN 7633 Load ONE piece of Neo-
Tex ™ per wash clip
BLUE 6800 ORANGE 7634 12 pcs. of 1/4” Neo-Tex ™
RED 6797 YELLOW 7635 in this row per hub
42”
25”x 8” 1 PIECE: 25” X 8” X 1/8” THICK Neo-Tex ™ Box: 48 pcs.
Secondary BLACK 6338 GREEN 6340 Load TWO pieces of
(accent) Neo-Tex ™ per wash clip
Color BLUE 6339 ORANGE 7413 24 pcs. of 1/8” Neo-Tex ™
RED 6341 YELLOW 6402 in this row per hub
These two 20”x 8” 1 PIECE: 41” X 8” X 1/8” THICK

sections Neo-Tex ™ Box: 24 pcs.
20” 2-ply pieces when
are 1/8” BLACK 6227 GREEN 6229 folded on wash clip
thick BLUE 6228 ORANGE 7410 12 pcs. of 1/8” Neo-Tex ™
in this row per hub
RED 6230 YELLOW 6393
16”x 8” 1 PIECE: 33” X 8” X 1/8” THICK Neo-Tex ™ Box: 48 pcs.
BLACK 6215 GREEN 6217 16” 2-ply pieces when
Primary folded on wash clip
Color BLUE 6216 ORANGE 7407 24 pcs. of 1/8” Neo-Tex ™
Lower Hub RED 6218 YELLOW 6384 in this row per hub
Clips:
12” Dia. 16”x 10”
Quantity for 1 PIECE: 33” X 10” X 1/8” THICK Neo-Tex ™ Box: 48 pcs.
both wheels: Lower Hub: BLACK 6223 GREEN 6225 16” 2-ply pieces when
48 - 8” Clips 106026 folded on wash clip
96 -10”Clips BLUE 6224 ORANGE 7409 24 pcs. of 1/8” Neo-Tex ™
in this row per hub
RED 6226 YELLOW 6390
These
28” three 16”x 10” 1 PIECE: 33” X 10” X 1/8” THICK
sections BLACK 6223 GREEN 6225 Neo-Tex ™ Box: 48 pcs.
16” 2-ply pieces when
are 1/8” folded on wash clip
thick BLUE 6224 ORANGE 7409 24 pcs. of 1/8” Neo-Tex ™
RED 6226 YELLOW 6390 in this row per hub
