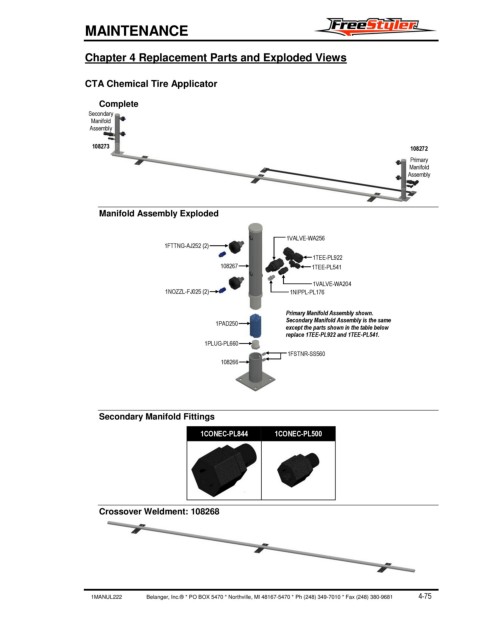

MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
CTA Chemical Tire Applicator
Complete
Secondary
Manifold
Assembly
108273 108272
Primary
Manifold
Assembly
Manifold Assembly Exploded
1VALVE-WA256
1FTTNG-AJ252 (2)
1TEE-PL922
108267 1TEE-PL541
1VALVE-WA204
1NOZZL-FJ025 (2) 1NIPPL-PL176
Primary Manifold Assembly shown.
Secondary Manifold Assembly is the same
1PAD250
except the parts shown in the table below
replace 1TEE-PL922 and 1TEE-PL541.
1PLUG-PL660
1FSTNR-SS560
108266
Secondary Manifold Fittings
1CONEC-PL844 1CONEC-PL500
Crossover Weldment: 108268
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-75
