MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

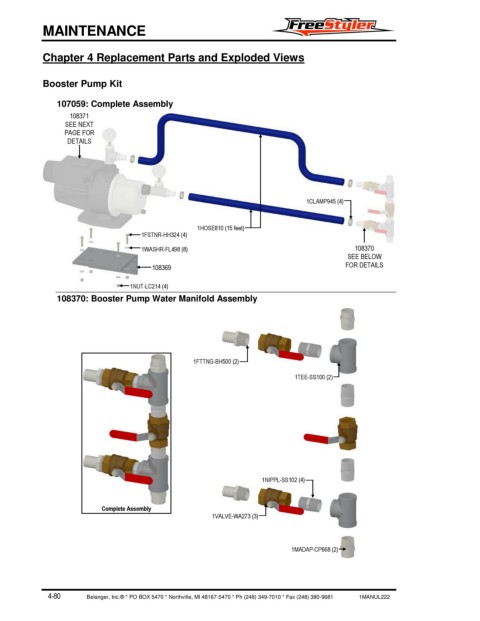

Booster Pump Kit
107059: Complete Assembly
108371
SEE NEXT
PAGE FOR
DETAILS
1CLAMP945 (4)
1HOSE810 (15 feet)
1FSTNR-HH324 (4)
1WASHR-FL498 (8) 108370
SEE BELOW
108369 FOR DETAILS
1NUT-LC214 (4)
108370: Booster Pump Water Manifold Assembly
1FTTNG-BH500 (2)
1TEE-SS100 (2)
1NIPPL-SS102 (4)
Complete Assembly
1VALVE-WA273 (3)
1MADAP-CP668 (2)
