P. 288
MAINTENANCE

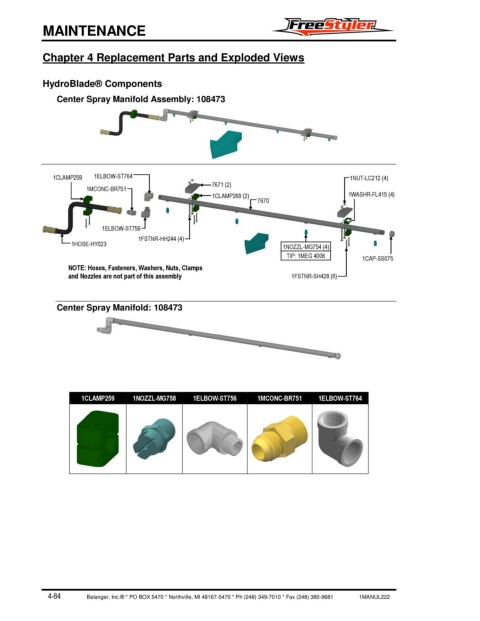

Chapter 4 Replacement Parts and Exploded Views
HydroBlade® Components
Center Spray Manifold Assembly: 108473
1CLAMP259 1ELBOW-ST764 1NUT-LC212 (4)
7671 (2)
1MCONC-BR751
1CLAMP269 (2) 1WASHR-FL415 (4)
7670
1ELBOW-ST756
1FSTNR-HH244 (4)
1HOSE-HY023 1NOZZL-MG754 (4)
TIP: 1MEG 4006 1CAP-SS075
NOTE: Hoses, Fasteners, Washers, Nuts, Clamps
and Nozzles are not part of this assembly 1FSTNR-SH428 (6)
Center Spray Manifold: 108473
1CLAMP259 1NOZZL-MG758 1ELBOW-ST756 1MCONC-BR751 1ELBOW-ST764
4-84 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL222
