MAINTENANCE

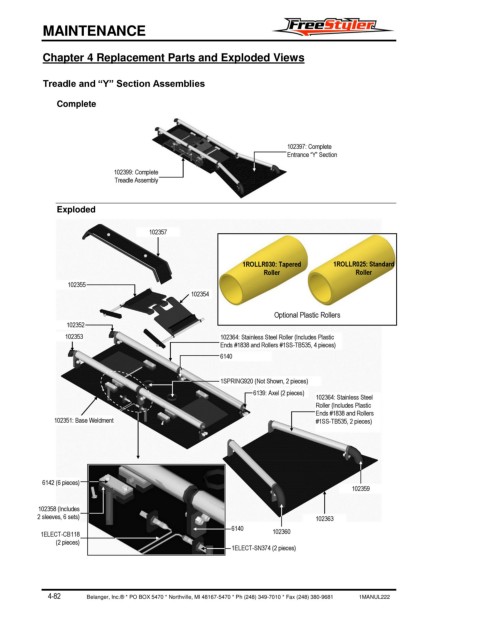

Chapter 4 Replacement Parts and Exploded Views
Treadle and “Y” Section Assemblies
Complete
102397: Complete
Entrance “Y” Section
102399: Complete
Treadle Assembly
Exploded
102357
1ROLLR030: Tapered 1ROLLR025: Standard
Roller Roller
102355
102354
Optional Plastic Rollers
102352
102353 102364: Stainless Steel Roller (Includes Plastic
Ends #1838 and Rollers #1SS-TB535, 4 pieces)
6140
1SPRING920 (Not Shown, 2 pieces)
6139: Axel (2 pieces)
102364: Stainless Steel
Roller (Includes Plastic
Ends #1838 and Rollers
102351: Base Weldment #1SS-TB535, 2 pieces)
6142 (6 pieces)
102359
102358 (Includes
2 sleeves, 6 sets) 102363
6140 102360
1ELECT-CB118
(2 pieces)
1ELECT-SN374 (2 pieces)
4-82 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL222
