MAINTENANCE

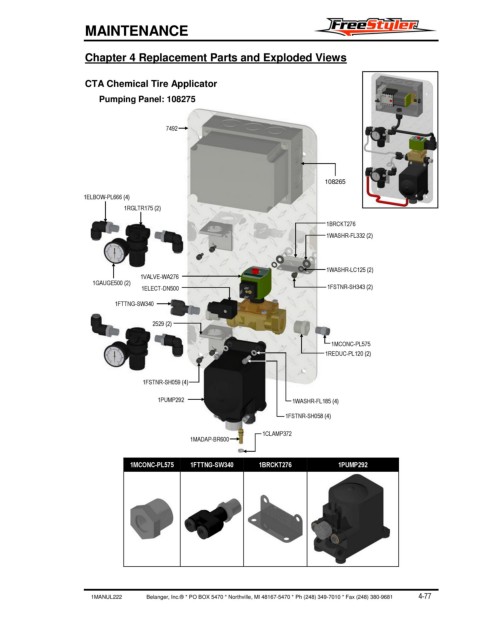

Chapter 4 Replacement Parts and Exploded Views
CTA Chemical Tire Applicator
Pumping Panel: 108275
7492
108265
1ELBOW-PL666 (4)
1RGLTR175 (2)
1BRCKT276
1WASHR-FL332 (2)
1WASHR-LC125 (2)
1VALVE-WA276
1GAUGE500 (2)
1ELECT-DN500 1FSTNR-SH343 (2)
1FTTNG-SW340
2529 (2)
1MCONC-PL575
1REDUC-PL120 (2)
1FSTNR-SH059 (4)
1PUMP292 1WASHR-FL185 (4)
1FSTNR-SH058 (4)
1CLAMP372
1MADAP-BR600
1MCONC-PL575 1FTTNG-SW340 1BRCKT276 1PUMP292
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-77
