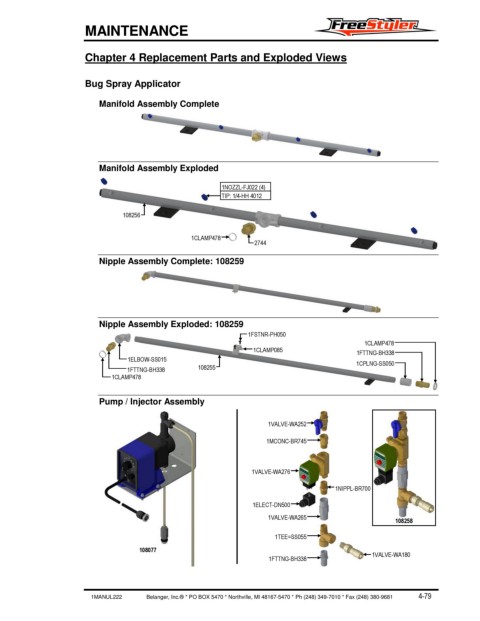

Chapter 4 Replacement Parts and Exploded Views
Bug Spray Applicator
Manifold Assembly Complete
Manifold Assembly Exploded
1NOZZL-FJ022 (4)
TIP: 1/4-HH 4012
108256
1CLAMP478
2744
Nipple Assembly Complete: 108259
Nipple Assembly Exploded: 108259
1FSTNR-PH050
1CLAMP478
1CLAMP085 1FTTNG-BH338
1ELBOW-SS015 1CPLNG-SS050
1FTTNG-BH338 108255
1CLAMP478
Pump / Injector Assembly
1VALVE-WA252
1MCONC-BR745
1VALVE-WA276
1NIPPL-BR700
1ELECT-DN500
1VALVE-WA265
108258
1TEE=SS055
108077
1FTTNG-BH338 1VALVE-WA180
