Page 289 - FreeStyler® Maintenance Manual
P. 289
MAINTENANCE

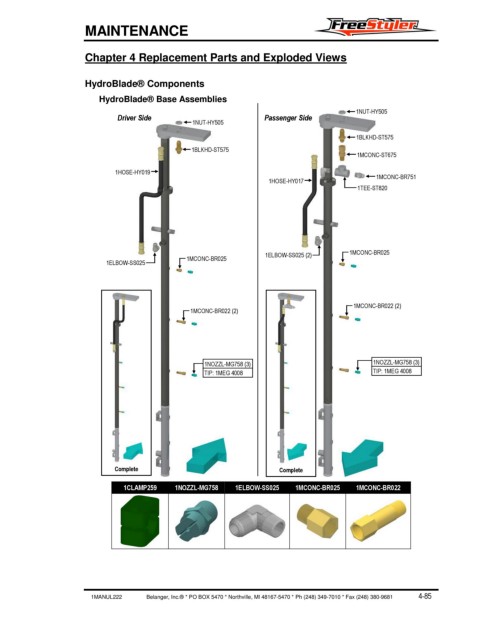

Chapter 4 Replacement Parts and Exploded Views
HydroBlade® Components
HydroBlade® Base Assemblies
1NUT-HY505
Driver Side Passenger Side
1NUT-HY505
1BLKHD-ST575
1BLKHD-ST575
1MCONC-ST675
1HOSE-HY019
1HOSE-HY017 1MCONC-BR751
1TEE-ST820
1ELBOW-SS025 (2) 1MCONC-BR025
1MCONC-BR025
1ELBOW-SS025
1MCONC-BR022 (2)
1MCONC-BR022 (2)
1NOZZL-MG758 (3) 1NOZZL-MG758 (3)
TIP: 1MEG 4008 TIP: 1MEG 4008
Complete Complete
1CLAMP259 1NOZZL-MG758 1ELBOW-SS025 1MCONC-BR025 1MCONC-BR022
