MAINTENANCE

                       Chapter 4 Replacement Parts and Exploded Views



                       HydroBlade® /Stinger Components

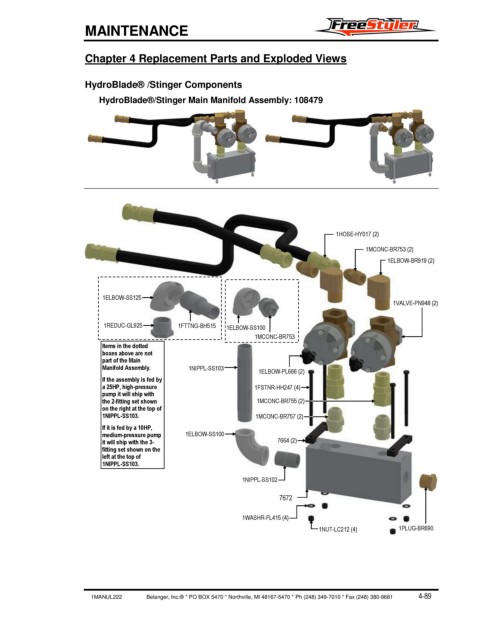

                          HydroBlade®/Stinger Main Manifold Assembly: 108479


















                                                                                       1HOSE-HY017 (2)

                                                                                              1MCONC-BR753 (2)
                                                                                                    1ELBOW-BR919 (2)



                           1ELBOW-SS125
                                                                                                     1VALVE-PN948 (2)

                           1REDUC-GL925       1FTTNG-BH515   1ELBOW-SS100
                                                                  1MCONC-BR753
                           Items in the dotted
                           boxes above are not
                           part of the Main
                           Manifold Assembly.    1NIPPL-SS103      1ELBOW-PL666 (2)
                           If the assembly is fed by
                           a 25HP, high-pressure                  1FSTNR-HH247 (4)
                           pump it will ship with
                           the 2-fitting set shown                  1MCONC-BR755 (2)
                           on the right at the top of
                           1NIPPL-SS103.                          1MCONC-BR757 (2)
                           If it is fed by a 10HP,
                           medium-pressure pump   1ELBOW-SS100
                           it will ship with the 3-                     7664 (2)
                           fitting set shown on the
                           left at the top of
                           1NIPPL-SS103.

                                                               1NIPPL-SS102

                                                                        7672

                                                               1WASHR-FL415 (4)

                                                                                  1NUT-LC212 (4)       1PLUG-BR690






                        1MANUL222              Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681                 4-89
