MAINTENANCE

Chapter 4 Replacement Parts and Exploded Views

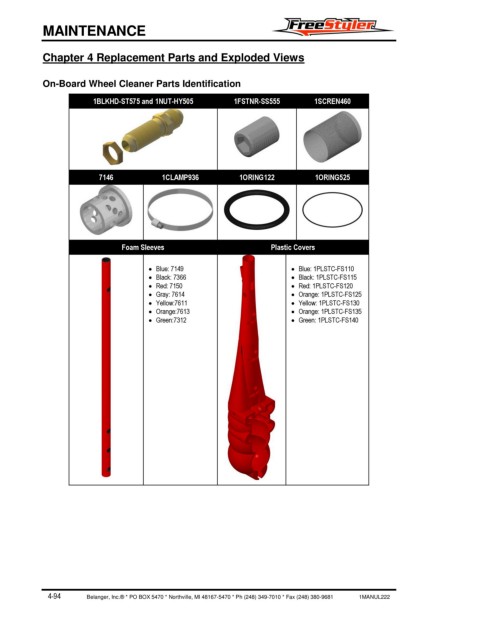

On-Board Wheel Cleaner Parts Identification

1BLKHD-ST575 and 1NUT-HY505 1FSTNR-SS555 1SCREN460

7146 1CLAMP936 1ORING122 1ORING525

Foam Sleeves Plastic Covers

 Blue: 7149  Blue: 1PLSTC-FS110
 Black: 7366  Black: 1PLSTC-FS115
 Red: 7150  Red: 1PLSTC-FS120
 Gray: 7614  Orange: 1PLSTC-FS125
 Yellow:7611  Yellow: 1PLSTC-FS130
 Orange:7613  Orange: 1PLSTC-FS135
 Green:7312  Green: 1PLSTC-FS140
