Page 299 - FreeStyler® Maintenance Manual
P. 299
MAINTENANCE

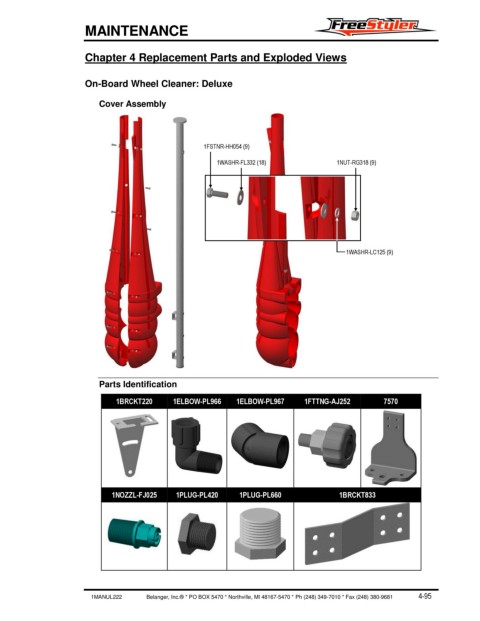

Chapter 4 Replacement Parts and Exploded Views
On-Board Wheel Cleaner: Deluxe
Cover Assembly
1FSTNR-HH054 (9)
1WASHR-FL332 (18) 1NUT-RG318 (9)
1WASHR-LC125 (9)
Parts Identification
1BRCKT220 1ELBOW-PL966 1ELBOW-PL967 1FTTNG-AJ252 7570
1NOZZL-FJ025 1PLUG-PL420 1PLUG-PL660 1BRCKT833
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-95
